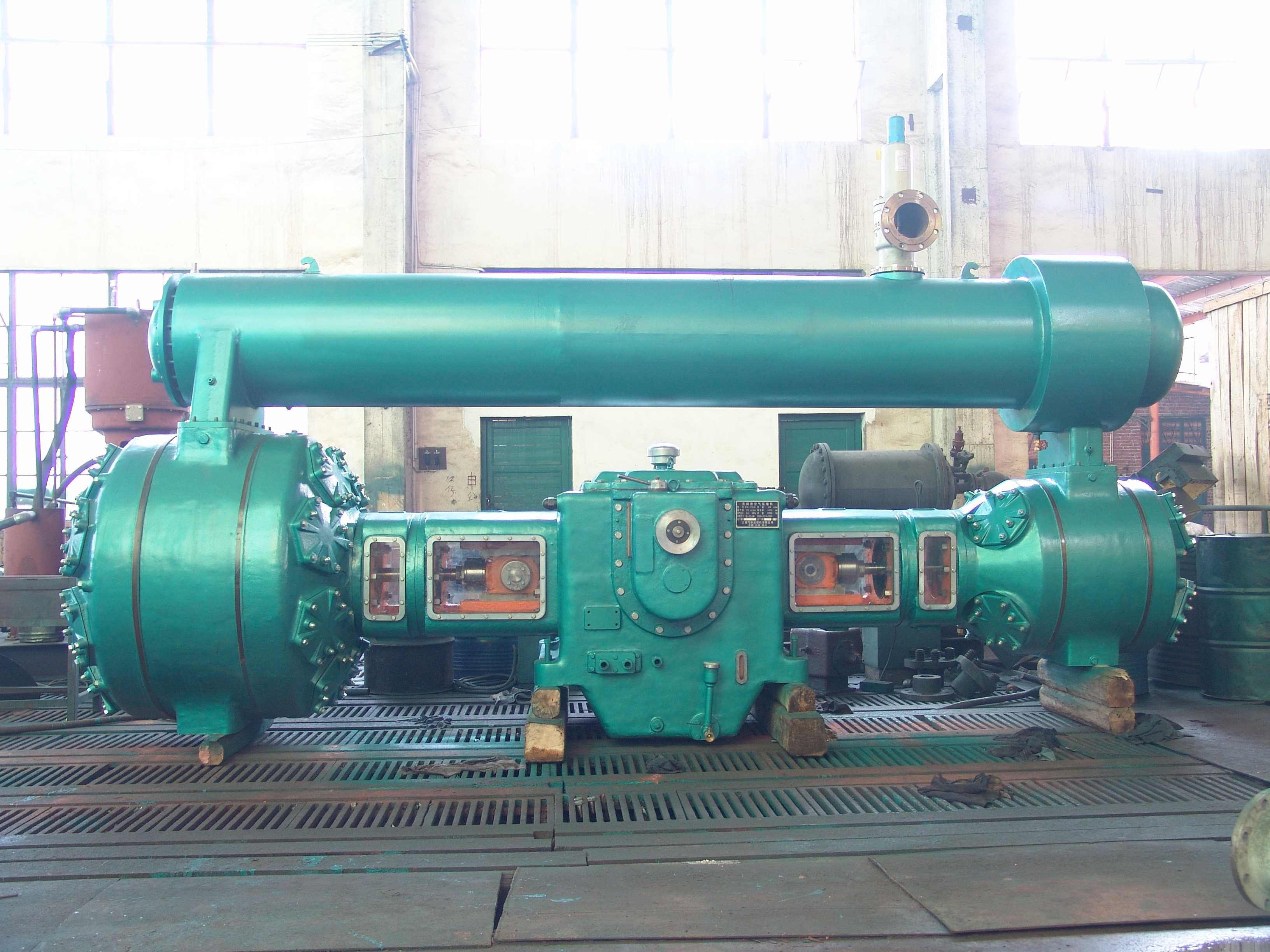

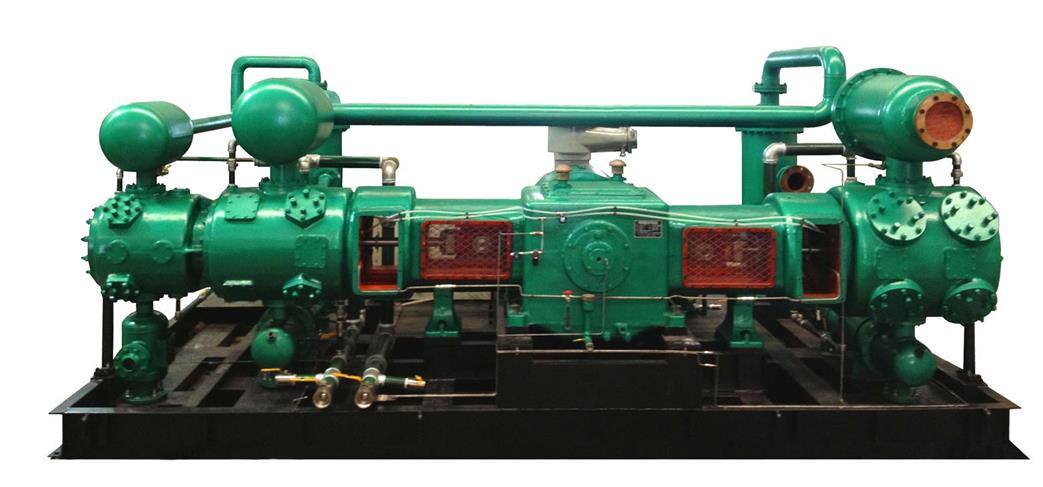

52191A 11-2DF-B-NL Gas Compressor

Tag No.：52191A

Model：11-2DF-B-NL

Name：Gas Compressor

1.Performance guarantee (rate work condition)

Shaft power	The deviation is not greater than + 3%
Discharge amount	There is no negative deviation, and the positive deviation is not more than 3%.
Discharge pressure	Compressor noise no negative tolerance
Noise	No more than 85 decibels at 1 meter away from the unit
Process gas outlet temperature at all levels	No more than 135°C
Gas outlet temperature under nitrogen condition	No more than 150℃
Frame pulsation	≤7.1mm/s

2.Main Data for Main Driver

Item	Unit	Information or specification
Type		YB series
Model		Variable induction driver
Rated power	KW	380
RPM	r/min	300
Rated voltage	V	6KV
Insulation level		Level F，B grade temperature increase
Operating method		S1
Bearing and lubricant		Plain bearings/self-lubricating
Protection class		Main body IP55WF1
Rotation direction (viewed from the motor shaft extension)		Clockwise
Structure		Horizontal
Cooling		Air Cool
Explosion hazardous area classification		Zone 2
Explosion-proof mark		ExdⅡCT4 Gb
