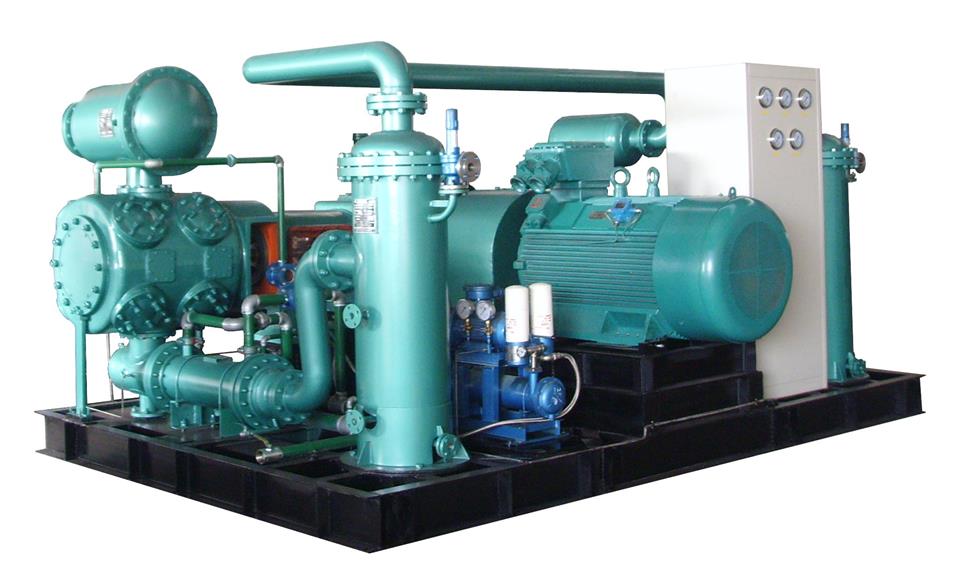

52192A 14-4DF-2G-NL Hydrogen Compressor

Tag No.：52192A

Model：14-4DF-2G-NL

Name：Hydrogen Compressor

Technical Parameters

Technical parameters	Model: 14-4DF-G2-NL
Volume（Nm³/h）	43152
Inlet pressure Mpa(A)	1st Stage:0.79Mpa 2nd Stage:1.71Mpa
Outlet pressure Mpa(A)	1st Stage:1.76Mpa 2nd Stage:4.30Mpa
Inlet/Outlet temperature（℃）	40/109
Cylinder Diameter（mm)	1st Stage:622.3 2nd Stage:622.3 3rd Stage:431.8 4th Stage:431.8
Stroke（mm)	355.6
Rotate speed（rpm)	300
Brake/Motor power (KW)	737.16/737.16 773.47/773.47 Gross power：3058.54
Max piston power (KN)	438.98
Weight for unit（T)	54
Site size required（mm)	5181X9100X2000
